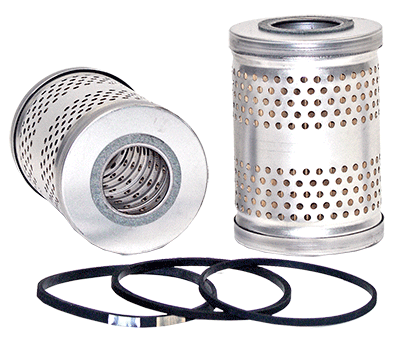

R208V| Ryco | Pleated Paper Element OFS # 97-01-0807

PLEATED PAPER ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.80 IN   (71.12 MM)

Outer Diameter, Bottom:  2.80 IN   (71.12 MM)

Inner Diameter, Top:  1.30 IN   (33.02 MM)

Inner Diameter, Bottom:  1.30 IN   (33.02 MM)

Length:  4.29 IN   (108.97 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  3.10 LB   (1.41 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
