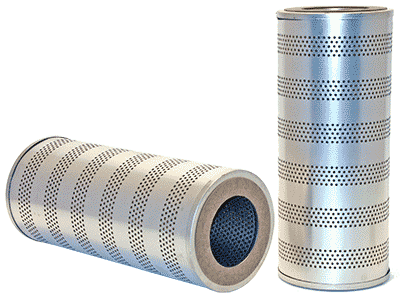

Q61420| Flo-Line | Pleated Paper Element | OFS # 97-01-0726
Performance Data
Micron Rating: 25.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 125 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 6.00 IN (152.40 MM)
Outer Diameter, Bottom: 6.00 IN (152.40 MM)
Inner Diameter, Top: 3.50 IN (88.90 MM)
Inner Diameter, Bottom: 3.50 IN (88.90 MM)
Length: 14.50 IN (368.30 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: 3600 SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: NONE - NONE
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 4.00 LB (1.81 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
