57185 | WIX | Pleated Paper Element | OFS # 97-28-1313

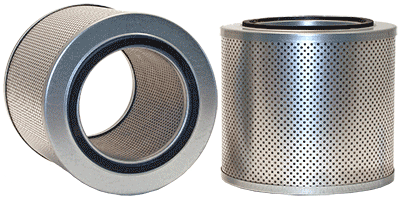

PLEATED PAPER ELEMENT
Performance Data
Micron Rating: 20.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 7.63 IN (193.80 MM)
Outer Diameter, Bottom: 7.63 IN (193.80 MM)
Inner Diameter, Top: 4.69 IN (119.13 MM)
Inner Diameter, Bottom: 4.69 IN (119.13 MM)
Length: 7.09 IN (180.09 MM)
Thread:
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 15.00 LB (6.80 KG)
