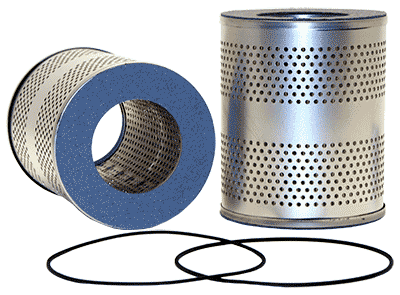

51257 | WIX | Pleated Paper Element | OFS # 97-28-0365
PLEATED PAPER ELEMENT
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 5.06 IN (128.52 MM)
Outer Diameter, Bottom: 5.06 IN (128.52 MM)
Inner Diameter, Top: 2.93 IN (74.42 MM)
Inner Diameter, Bottom: 2.93 IN (74.42 MM)
Length: 6.13 IN (155.70 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 11.40 LB (5.17 KG)
