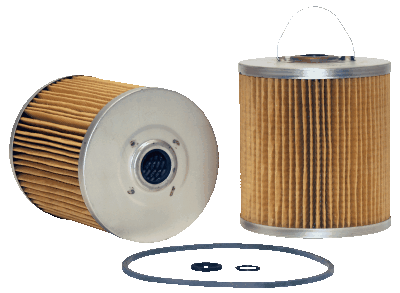

33209 | WIX | Pleated Paper Element | OFS # 97-28-1886
PLEATED PAPER ELEMENT
Lead Time: Usually Ships In 24-28 Hours
Performance Data
Micron Rating: 10.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.29 IN (108.97 MM)
Outer Diameter, Bottom: 4.29 IN (108.97 MM)
Inner Diameter, Top: 0.68 IN (17.27 MM)
Inner Diameter, Bottom: 0.83 IN (21.08 MM)
Length: 4.69 IN (119.13 MM)
Thread: NONE
Physical Specifications
Handle: YES
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 0.60 LB (0.27 KG)
