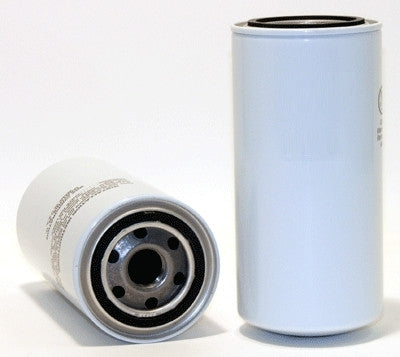

001847C - SULLAIR - OFS # 97-33-7112

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 0.00

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.38 IN (111.25 MM)

Outer Diameter, Bottom: 4.38 IN (111.25 MM)

Inner Diameter, Top: 2.44 IN (61.98 MM)

Inner Diameter, Bottom: 0.94 IN (23.88 MM)

Length: 13.00 IN (330.20 MM)

Thread: N/A

Physical Specifications
Handle: NONE

Seal Material: BUNA

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: 304SS

Filter Area: SQ.IN.

Plating: N/A

Outer Jacket: NONE

Configuration: SINGLE W/BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
