94722 | Big A | OFS # 97-22-0997
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: NOT RATED
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 9.14 IN (232.16 MM)
Outer Diameter, Bottom: 9.14 IN (232.16 MM)
Inner Diameter, Top: 0.90 IN (22.86 MM)
Inner Diameter, Bottom: 5.87 IN (149.10 MM)
Length: 18.48 IN (469.39 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES - METAL
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 6.00 LB (2.72 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

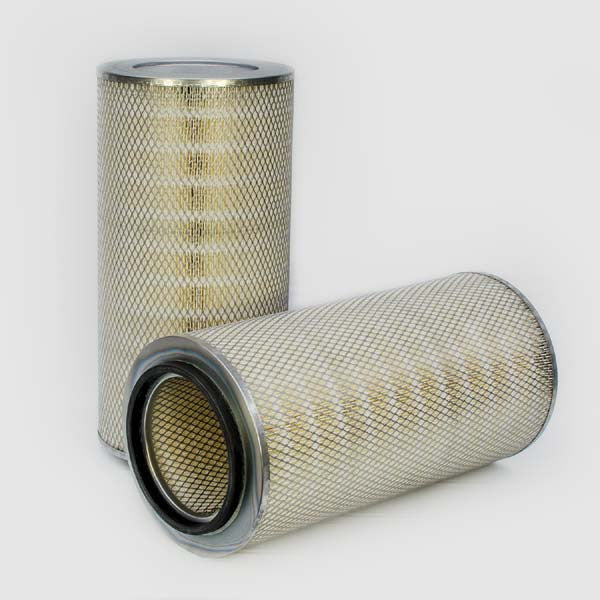

Intake Air Filter Element
