94352 | Big A | OFS # 97-22-0585
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 19.25 IN (488.95 MM)
Outer Diameter, Bottom: 19.25 IN (488.95 MM)
Inner Diameter, Top: 12.88 IN (327.15 MM)
Inner Diameter, Bottom:
Length: 9.94 IN (252.48 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: N/A
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: 145 SQ.FT.
Plating: N/A
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 16.00 LB (7.26 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

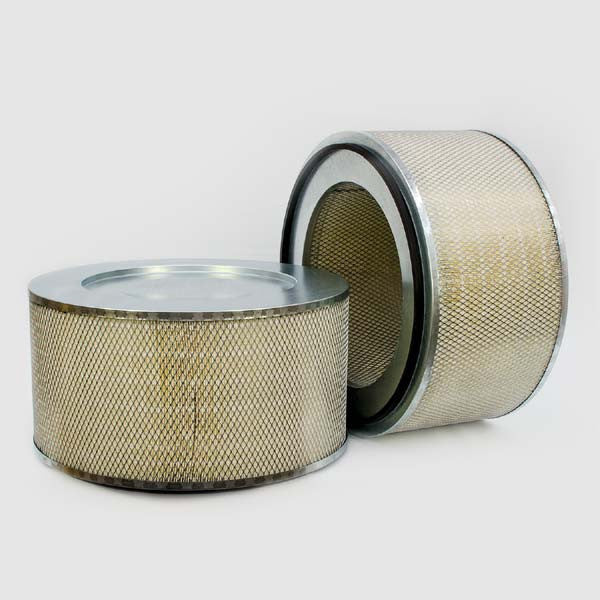

Intake Air Filter Element
