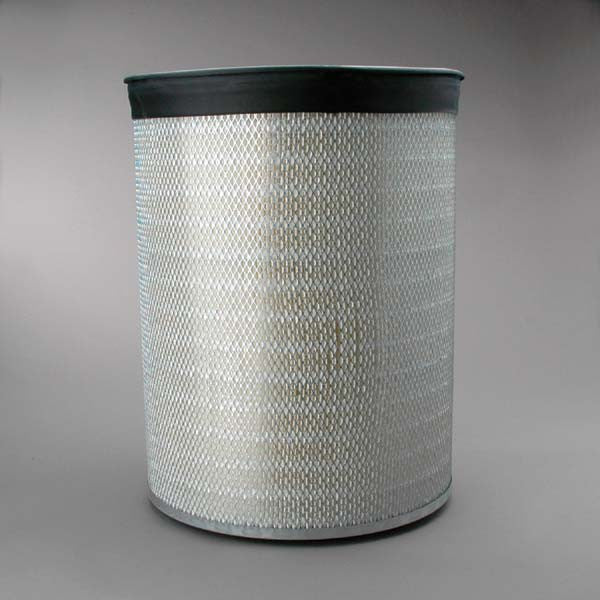

93440 | Big A | Intake Air Filter Element
***Image may vary***

93440 | Big A | OFS # 97-28-1625

  • $140.00


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 18.60 IN (472.44 MM)

Outer Diameter, Bottom: 17.60 IN (447.04 MM)

Inner Diameter, Top: 0.90 IN (22.86 MM)

Inner Diameter, Bottom: 11.10 IN (281.94 MM)

Length: 23.62 IN (599.95 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN/BOLT HOL



Packaging Specifications
Number per Carton: 1

Carton Weight: 27.30 LB (12.38 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
