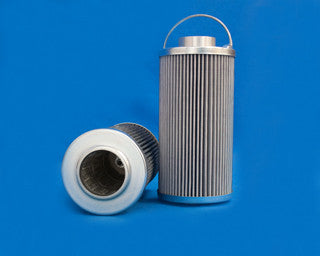

SBF0660RZ03V - SCHROEDER - OFS # 97-05-0376
Performance Data
Micron Rating: 6.00 ABSOLUTE
Beta Rating: B6=200
Collapse Pressure Rating: 250 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Additional Notes: ELEMENT HAS A STANDARD BY-PASS SETTING OF 43 PSID
Dimensional Specifications
Outer Diameter, Top: 4.50 IN (114.30 MM)
Outer Diameter, Bottom: 4.50 IN (114.30 MM)
Inner Diameter, Top: 2.56 IN (65.02 MM)
Inner Diameter, Bottom:
Length: 13.09 IN (332.49 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: CORROSION RESISTANT STEEL
Center Tube: CORROSION RESISTANT STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
