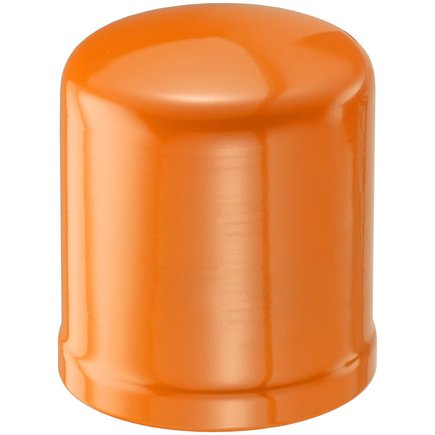

P7537 | FRAM | Filter Element | OFS # 97-28-5564

Availability

Usually ships in 24-48 hours

Shipping Service: UPS Ground

Performance Data

Micron Rating:  0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Change-out Differential Pressure:  20 PSID

Dimensional Specifications

Outer Diameter, Top:  3.81 IN   (96.77 MM)

Outer Diameter, Bottom:  3.81 IN   (96.77 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  4.46 IN   (113.28 MM)

Thread:  1 3/8-12

Physical Specifications

Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications

Number per Carton:  1

Carton Weight:  1.80 LB   (0.82 KG)

Cross References

AC-DELCO PF1761 BALDWIN BT8416 BIG A 92586 CARQUEST 85586 CHAMP LFH8329 DONALDSON P169078 FLEETGUARD HF35006 HASTINGS HF972 JOHN DEERE AM102723 JOHN DEERE AM108613 LUBER-FINER LFH8329 NAPA

FAQ

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
