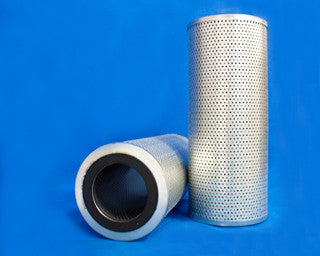

HF28974 - FLEETGUARD - OFS # 97-01-3703
Performance Data
Micron Rating: 20.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 6.00 IN (152.40 MM)
Outer Diameter, Bottom: 6.00 IN (152.40 MM)
Inner Diameter, Top: 3.50 IN (88.90 MM)
Inner Diameter, Bottom: 3.50 IN (88.90 MM)
Length: 14.49 IN (368.05 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 6.60 LB (2.99 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
