P606288 | Donaldson | OFS # 97-28-8615
Performance Data
Micron Rating: 15.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 10.88 IN (276.35 MM)
Outer Diameter, Bottom: 10.88 IN (276.35 MM)
Inner Diameter, Top: 6.50 IN (165.10 MM)
Inner Diameter, Bottom:
Length: 5.06 IN (128.52 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 3.90 LB (1.77 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

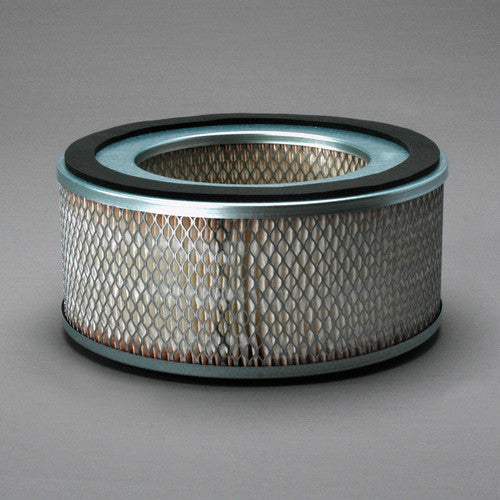

Intake Air Filter Element
