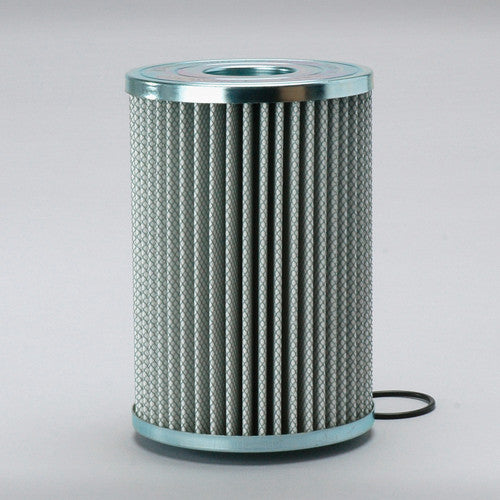

P569279 | Donaldson | OFS # 97-40-4055

Performance Data
Micron Rating: 8.00

Beta Rating: 200/5.4

Collapse Pressure Rating: 145 PSID

Maximum Temperature: 248 F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 5.12 IN (130.05 MM)

Outer Diameter, Bottom: 5.12 IN (130.05 MM)

Inner Diameter, Top: 2.03 IN (51.56 MM)

Inner Diameter, Bottom:

Length: 8.03 IN (203.96 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media: MICROGLASS

Filter Area: 821 SQ IN

Plating:

Outer Jacket: NONE

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
