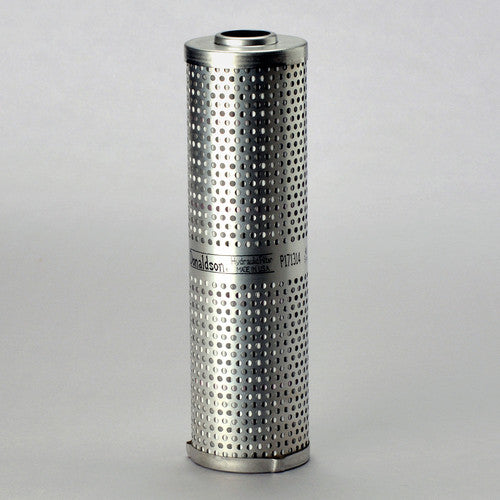

P171314 | Donaldson | Filter Element | OFS # 97-28-5208

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 6.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 2.69 IN (68.33 MM)

Outer Diameter, Bottom: 2.69 IN (68.33 MM)

Inner Diameter, Top: 1.01 IN (25.65 MM)

Inner Diameter, Bottom: 1.01 IN (25.65 MM)

Length: 9.31 IN (236.47 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
