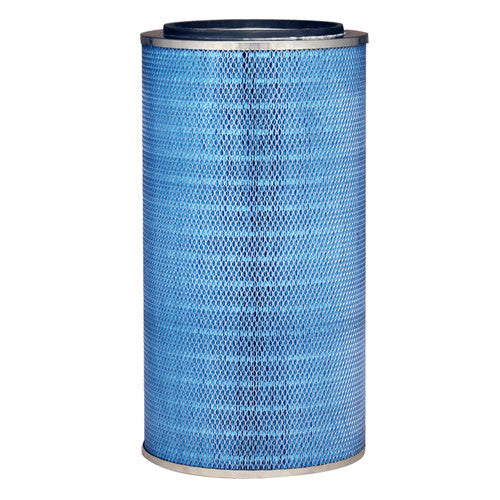

P032948-016-436 | DONALDSON | UAS ULTRA-WEB FILTER CARTRIDGE | OFS # 97-28-3297 | Product Usually Ships in 1-5 Days

Performance Data

Micron Rating:  0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  180 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications

Outer Diameter, Top:  12.74 IN   (323.60 MM)

Outer Diameter, Bottom:  12.74 IN   (323.60 MM)

Inner Diameter, Top:  8.38 IN   (212.85 MM)

Inner Diameter, Bottom:  8.38 IN   (212.85 MM)

Length:  26.00 IN   (660.40 MM)

Thread:  NONE

Physical Specifications

Handle:  NONE

Seal Material:  ISOPRENE

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  NANO-FIBER / Ultra-Web

Filter Area:  226 SQ.FT.

Plating:

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN END

Packaging Specifications

Number per Carton:  1

Carton Weight: 13.80 Lb

Click Here For Donaldson Torit P032948-016-436, Attributes: UAS Ultra-Web Cartridge 26.00" Length  X 12.74 Outer Diameter

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
