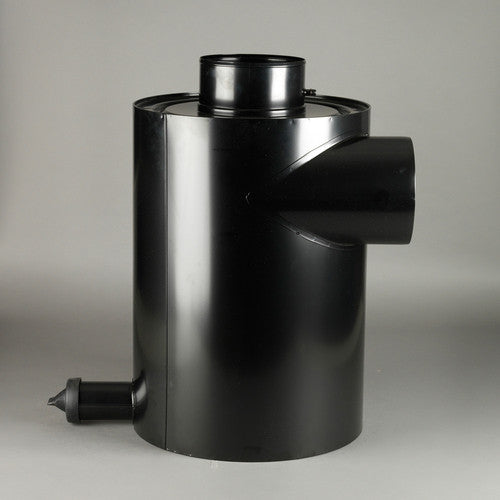

G180011 | Donaldson | FTG A/C | OFS # 97-30-1706

Performance Data

Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Rated Flow LR:1141 CFM (32.3 CMM)

Rated Flow MR:1250 CFM (35.4 CMM)

Rated Flow HR:1434 CFM (40.6 CMM)

Restriction LR: 5.98 In H2O (152 MM H2O)

Restriction MR: 7.99 In H2O (203 MM H2O)

Restriction HR:10.00 In H2O (254 MM H2O)

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications

Outer Diameter, Top: 7.99 Inches (203 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 7.99 Inches (203 MM)

Inner Diameter, Bottom:

Length: 25.12 Inches (638 MM)

Body Diameter Max:17.99 Inches (457 MM)

Thread:

Physical Specifications

Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Packaging Specifications

Number per Carton: 1

Carton Weight: 60.00 LB (27.22 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
