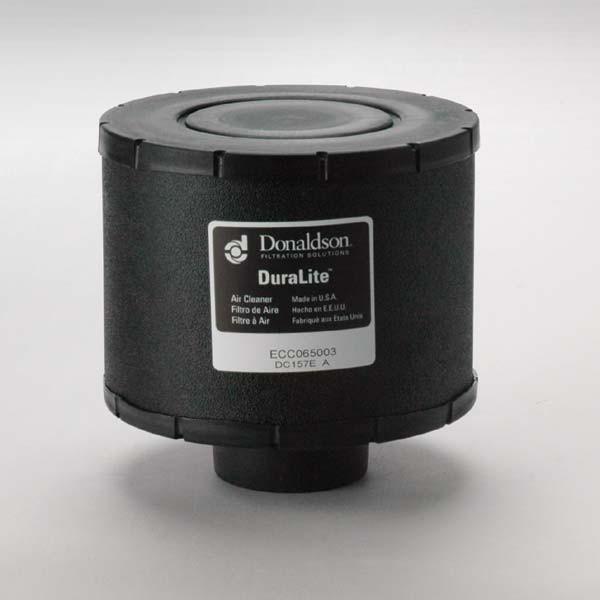

C065003 | Donaldson | Disposable Air Housing | OFS # 97-30-1500

Lead Time: 1-2 Weeks

Performance Data
Micron Rating:  0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  6.50 IN   (165.10 MM)

Outer Diameter, Bottom:  6.50 IN   (165.10 MM)

Inner Diameter, Top:  2.25 IN   (57.15 MM)

Inner Diameter, Bottom:  2.25 IN   (57.15 MM)

Length:  5.00 IN   (127.00 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  DOUBLE OPEN ENDS

Packaging Specifications
Number per Carton:  1

Carton Weight:  2.00 LB   (0.91 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
