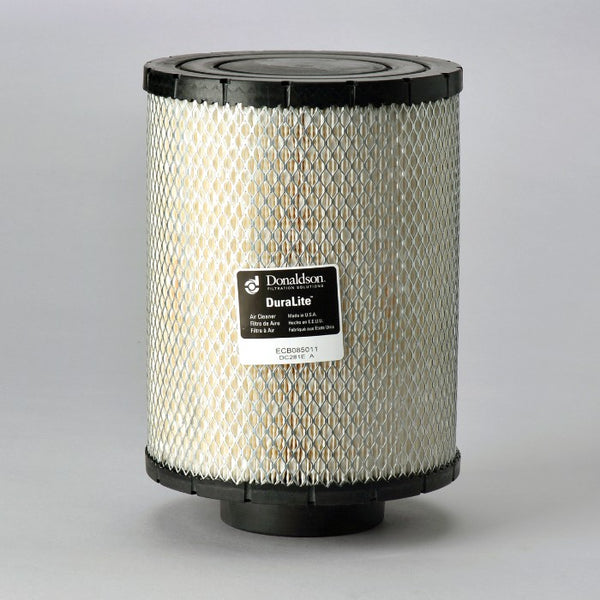

B085011 | Donaldson |

OFS # 97-28-1693

Lead Time: Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  N/A

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  8.50 IN   (215.90 MM)

Outer Diameter, Bottom:  8.50 IN   (215.90 MM)

Inner Diameter, Top:  4.00 IN   (101.60 MM)

Inner Diameter, Bottom:

Length:  12.38 IN   (314.45 MM)

Thread:  N/A HOUSING

Physical Specifications
Handle:  NONE

Seal Material:  N/A

Type of Adhesive:  N/A

Type of Endcap:  PLASTISOL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  N/A

Plating:  N/A

Outer Jacket:  YES - EPXANDED

Configuration:  END CONN HGT 1.38

Packaging Specifications
Number per Carton:  1

Carton Weight:  3.40 LB   (1.54 KG)

Click Here For Donaldson's Official Website

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
