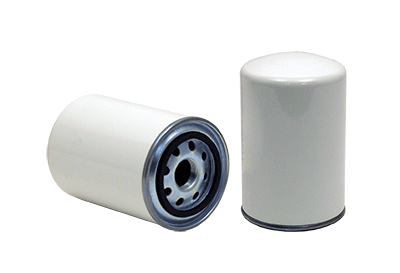

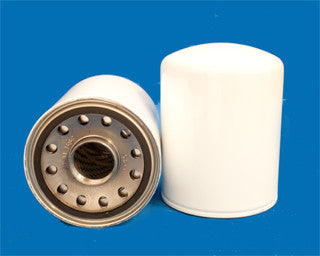

BT9558-MPG | Baldwin | OFS # 97-25-0300

AVAILABILITY - Usually ships in 24-48 hours

Spin-On Element

Performance Data
Micron Rating: 7.00

Beta Rating: N/A

Collapse Pressure Rating: 80 PSID

Maximum Temperature: 175 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: COMPRESSOR SPIN-ON, MAX. WORKING PRESSURE = 100 PSI

Dimensional Specifications
Outer Diameter, Top: 5.00 IN (127.00 MM)

Outer Diameter, Bottom: 5.00 IN (127.00 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 7.00 IN (177.80 MM)

Thread: 1.25-11BS

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: N.A.

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: 3.8 SQ.FT.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight: 18.00 LB (8.16 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
