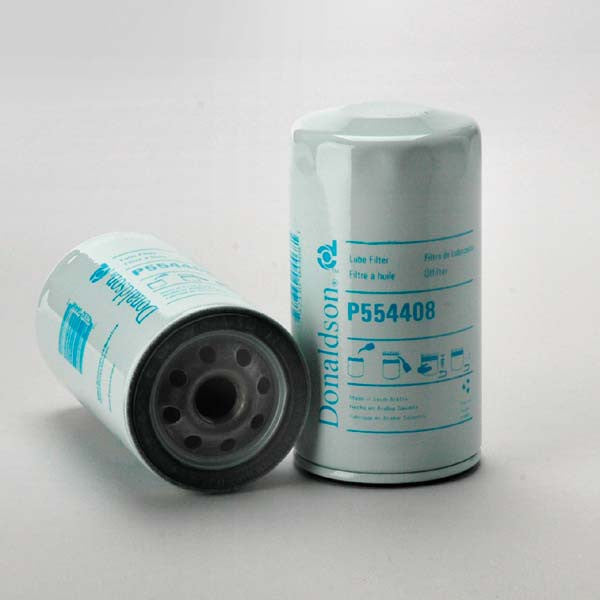

Spin-On Filter Element

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 20.00 NOMINAL

Beta Rating: B/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.05 IN (77.47 MM)

Outer Diameter, Bottom: 3.05 IN (77.47 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.90 IN (149.86 MM)

Thread: 3/4-16

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight: 9.80 LB (4.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
