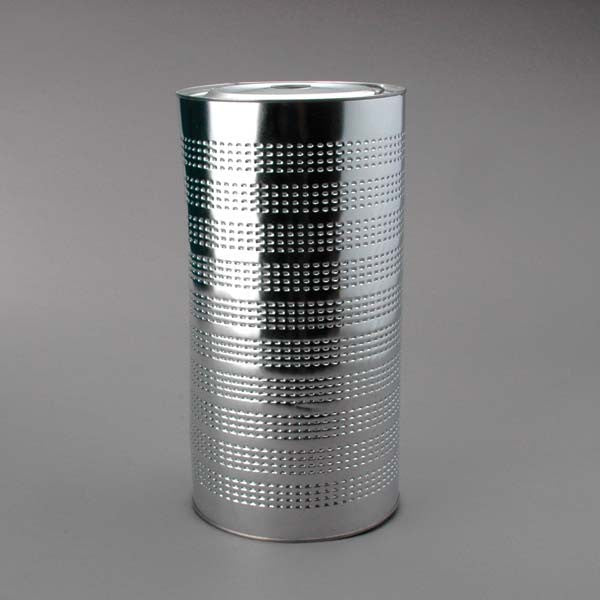

6267 | Ac Delco | Depth-Pack By-Pass Lube
***Image may vary***

6267 | Ac Delco | OFS # 97-28-0384

  • $24.20


Depth-Pack By-Pass Lube Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 5.00

Beta Rating:

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 7.72 IN (196.09 MM)

Outer Diameter, Bottom: 7.72 IN (196.09 MM)

Inner Diameter, Top: 1.10 IN (27.94 MM)

Inner Diameter, Bottom:

Length: 15.06 IN (382.52 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: POLYVINYLCHLORIDE

Type of Endcap: CARBON STEEL

Center Tube: CARBON STEEL

Type of Media: COTTON

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 31.00 LB (14.06 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
