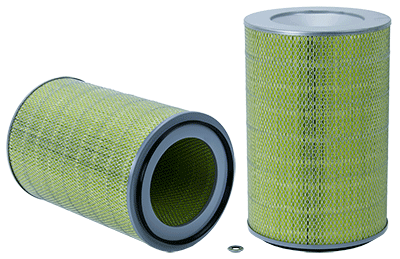

PA3688 | Baldwin | Outer Air Filter Element | OFS # 97-22-5556

Performance Data
Micron Rating:  0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:

Dimensional Specifications
Outer Diameter, Top:  12.06 IN   (306.32 MM)

Outer Diameter, Bottom:  12.06 IN   (306.32 MM)

Inner Diameter, Top:  7.69 IN   (195.33 MM)

Inner Diameter, Bottom:  0.69 IN   (17.53 MM)

Length:  18.50 IN   (469.90 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media:  PAPER

Filter Area:

Plating:

Outer Jacket:  YES

Configuration:  SINGLE W/ BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  10.30 LB   (4.67 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
